TRITON 1U-SX

Compact, high-density 1U rugged rackmount server designed for performance-critical applications operating in constrained or harsh environments.

Download Datasheet
Contact Sales

Product Description

Built around Intel® 5th Generation Xeon® Scalable processors, the Triton 1U-SX delivers enterprise-class compute capability in an extended-depth chassis measuring only 20 inches, enabling deployment where traditional servers are impractical.

Despite its reduced depth, the Triton 1U-SX supports dual-slot, full-height, full-length GPU configurations and offers expanded removable SSD capacity, providing an optimal balance of compute density, storage scalability, and expansion flexibility. The platform is fully modular and configurable to meet program-specific requirements across defense, industrial, and commercial applications. All systems are designed and assembled in the USA by Jensen Beach Technologies.

The Triton 1U-SX platform is engineered for long-term reliability, configurability, and performance determinism, making it well-suited for embedded computing, ISR, industrial automation, mobile command systems, and other mission-critical applications where size, power, and environmental resilience are key constraints. Each system benefits from Jensen Beach Technologies’ controlled engineering and manufacturing processes, ensuring repeatability, traceability, and lifecycle support.

Processor

  • (2) LGA 4677 processor sockets
  • Supports up to (2) 5th Gen. Intel® Xeon® Scalable Processors
  • Intel® C741 Chipset

Memory

  • (16) DIMM Slots (8 per CPU)
  • DDR5 ECC memory
  • 1.1V modules: up to 5600 MT/s
  • Up to 2 TB RAM

Network

  • (2) 10GbE RJ45 LAN
  • (2) 1GbE RJ45 LAN
  • (1) 1GbE RJ45 management LAN

Dimensional Drawings

Click to view dimensional drawings

Additional Specifications

PCIe Expansion

  • Up to (6) PCIe Gen5 x16 expansion slots depending on configuration
  • (1) PCIe Gen5 x16 expansion slot in GPU configuration

Removable Storage

  • (8) U.2 SSDs, up to 15mm SATA 3 or
    NVMe PCIe Gen5 x4

Video Output

  • (1) VGA

USB

  • (2) USB-C 3.2 (Front)
  • (2) USB-A 3.2 (Front)
  • (2) USB-A 3.2 (Rear)

Serial Ports

  • (1) RJ45

Internal Storage

  • (2) M.2 slots with PCIe Gen4 x4 interface
  • Supports 2280 and 22110 sizes

Power Supplies

  • (2) CRPS units

Security Features

  • Optional TPM 2.0

Verified Compatible OS

  • RHEL 6.8
  • RHEL 7
  • Windows Server 2022
  • CentOS 7

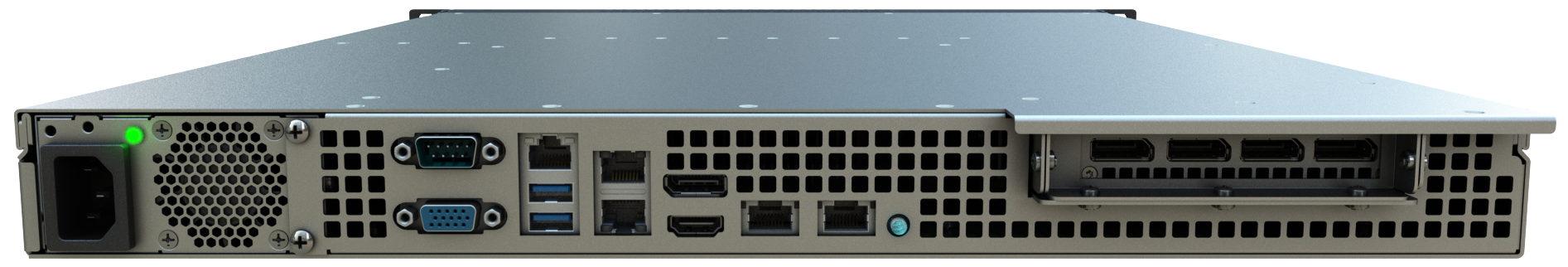

Rear Panel Options

Horizontal GPU Configuration

Click the image above to zoom

Environmental Specifications

Ruggedization Level 1 – Industrial

  • Operating temperature: 0°C to +55°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH

Ruggedization Level 2 – Extended

  • Operating temperature: -20°C to +65°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours

Ruggedization Level 3 – Rugged

  • Operating temperature: -40°C to +75°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.04 g/Hz (20–2000 Hz with a flat response to 1000 Hz), 6dB/octave roll-off from 100 to 2000Hz
  • Shock: 40 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours
