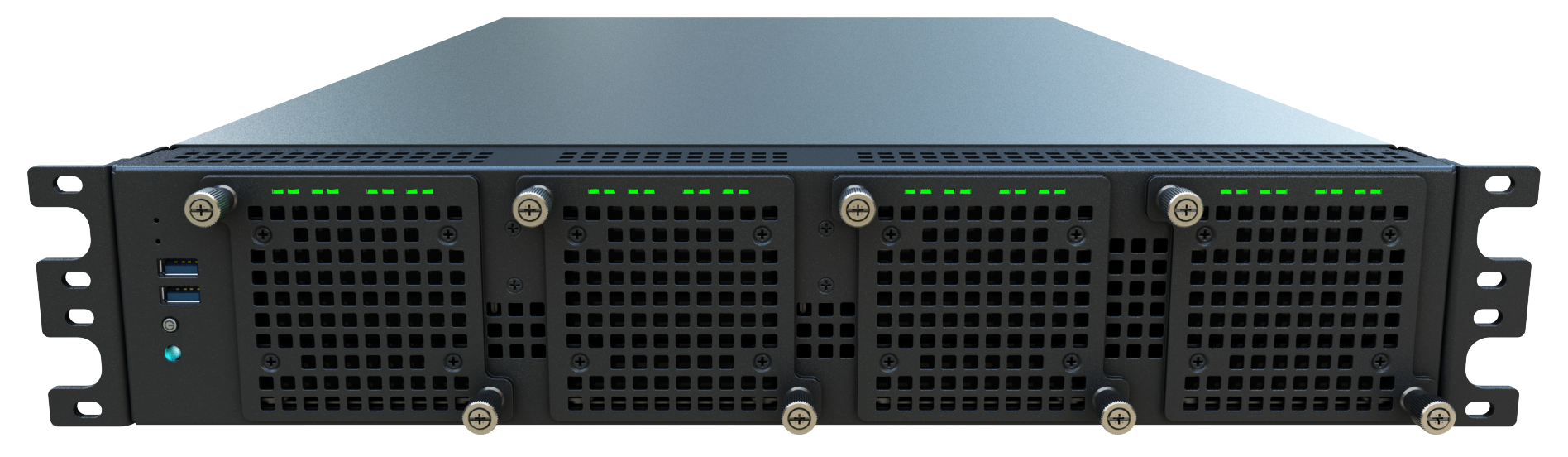

TIBURON 2U-NAS

Compact 2U, ULTRA high-density, AMD® EPYC, 24” Deep, rackmount NAS server

Download Datasheet
Contact Sales

Product Description

The Jensen Beach Technologies Tiburon 2U-NAS is a compact, modular 2U rugged rackmount server designed for high-performance network storage in space-constrained environments. The platform supports AMD® EPYC processors and provides extensive I/O, high volume storage, and expansion flexibility for mission-critical and industrial applications.

With a chassis depth of approximately 24 inches, the Tiburon 2U-NAS is well suited for deployment in vehicles, shelters, aircraft racks, and other installations where standard depth servers are common at a fraction of the weight. All Systems are designed and assembled in the United States and can be configured to meet specific program and environmental requirements.

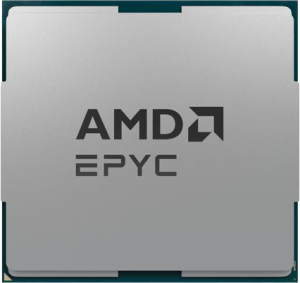

Processor

  • AMD® EPYC 9005 CPU
  • SP5 Socket

Memory

  • (24) DIMM slots
  • DDR5 ECC memory
  • RDIMM up to 5200 MT/s
  • Up to 6TB total memory

Network

  • (2) 100G LAN ports
  • (2) 10GBase-T LAN ports
  • (1) 1000Base-T dedicated IPMI port
  • Integrated AST2600 BMC w/ IPMI 2.0 & Redfish support

Dimensional Drawings

Click to view dimensional drawings

Additional Specifications

PCIe Expansion

  • • (2) PCIe Gen5 x16 expansion slots

Removable Storage

  • (16) U.2 SSDs, PCIe Gen5 x4
  • Optional U.2 SSD, PCIe Gen5 x4

Video Output

  • (1) VGA

USB

  • (2) USB 3.0 (Front)
  • (2) USB 3.2 Gen1 (Rear)

Serial Ports

  • (1) RJ45

Internal Storage

  • (2) M.2 slots with PCIe Gen5 x2
  • Supports NGFF-22110/2280 Cards

Power Supplies

  • Dual 120/240 VAC CRPS

Security Features

  • Optional TPM 2.0

Verified Compatible OS

  • RHEL 6.8
  • RHEL 7
  • Windows Server 2022
  • CentOS 7

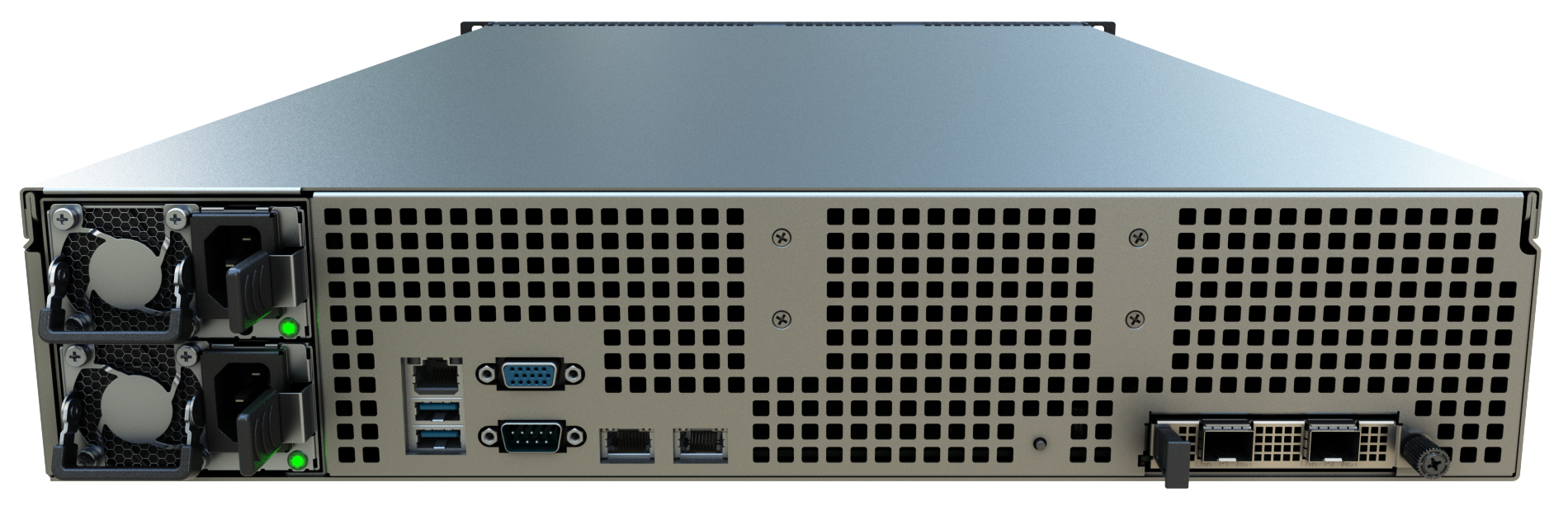

Rear Panel Options

Horizontal GPU Configuration

Click the image above to zoom

Environmental Specifications

Ruggedization Level 1 – Industrial

  • Operating temperature: 0°C to +55°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH

Ruggedization Level 2 – Extended

  • Operating temperature: -20°C to +65°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours

Ruggedization Level 3 – Rugged

  • Operating temperature: -40°C to +75°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.04 g/Hz (20–2000 Hz with a flat response to 1000 Hz), 6dB/octave roll-off from 100 to 2000Hz
  • Shock: 40 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours
