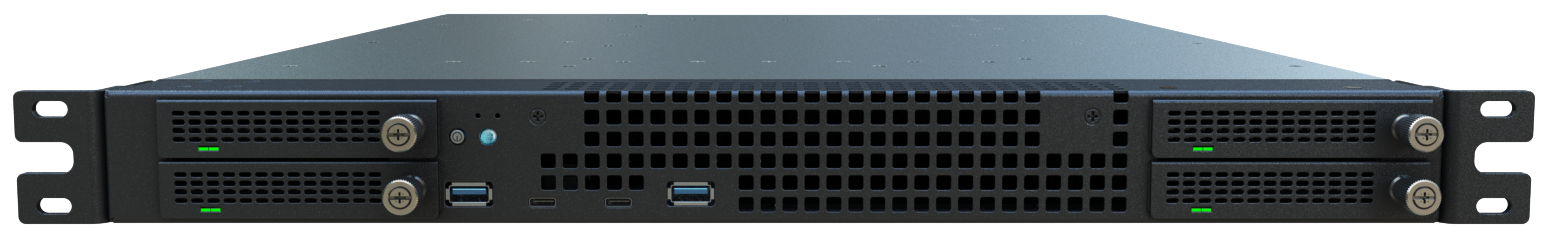

POSEIDON 1U-SX

Compact, high-density 2U rugged rackmount server designed for performance-critical applications operating in constrained or harsh environments.

Product Description

The JBT Poseidon 1U-SX is a modular 1U rugged rackmount workstation engineered for high compute density and deployment in controlled, extended, and harsh operating environments. Designed and assembled in the United States, the system integrates Intel® Core™ processor technology with flexible expansion and configurable ruggedization levels to meet program-specific requirements.

The platform supports variable rail depth configurations (22–24 in. or 27–31 in.) while maintaining support for a single-slot, full-length GPU or other PCIe add-in cards. The architecture enables customization across processing, storage, networking, power, and environmental specifications.

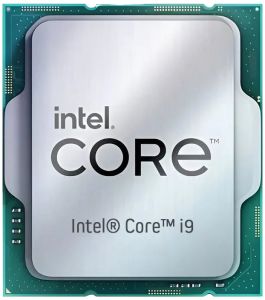

Processor

  • (1) LGA 1700 processor socket
  • Supports (1) 14/13/12th Gen. Intel® Core® Processor
  • Intel® W680 Chipset

Memory

  • (4) DIMM Slots
  • DDR5 ECC memory
  • 1.1V modules: up to 4400 MT/s
  • Up to 192GB RAM with 14/13th Gen
    128GB with 12th Gen

Network

  • (2) 10GbE RJ45 LAN
  • (2) 1GbE RJ45 LAN
  • (1) 1GbE RJ45 management LAN

Dimensional Drawings


Click to view dimensional drawings

Additional Specifications


PCIe Expansion

  • (6) PCIe Gen5 x16 expansion slot for a single slot, full length GPU or Add-in Card

Removable Storage

  • (4) U.2 SSDs, up to 15mm SATA 3 and/or
    NVMe PCIe Gen5 x4

Video Output

  • (1) VGA
  • (1) HDMI
  • (1) DisplayPort

USB

  • (2) USB-C 3.1 (Front)
  • (2) USB-A 3.0 (Front)
  • (2) USB-A 3.2 (Rear)

Serial Ports

  • (1) DB9

Internal Storage

  • (1) M.2 slot with PCIe Gen3 x4 interface
  • Supports 2230, 2242, 2260 and 2280 sizes

Power Supplies

  • (1) 80 Plus Platinum rated power supply up to 850W (Input: 90 – 264 VAC 50-60 Hz)

Security Features

  • Optional TPM 2.0

Verified Compatible OS

  • RHEL 8.5
  • Windows 10/11
  • CentOS 8.5
  • SUSE SLES 15.2
  • Ubuntu 21.10
  • VMware ESXi 7.0 U3d

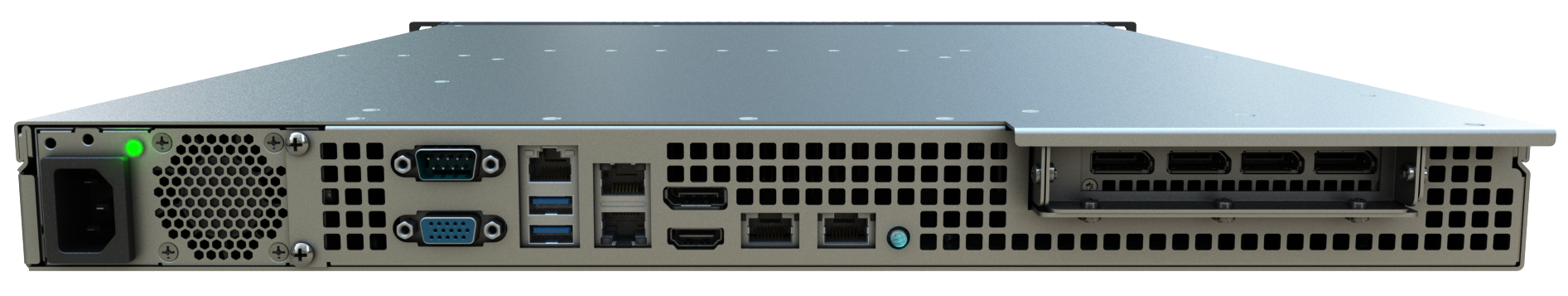

Rear Panel Options


Horizontal GPU Configuration

Click the image above to zoom

Environmental Specifications


Ruggedization Level 1 – Industrial

  • Operating temperature: 0°C to +55°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH

Ruggedization Level 2 – Extended

  • Operating temperature: -20°C to +65°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours

Ruggedization Level 3 – Rugged

  • Operating temperature: -40°C to +75°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.04 g/Hz (20–2000 Hz with a flat response to 1000 Hz), 6dB/octave roll-off from 100 to 2000Hz
  • Shock: 40 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours
