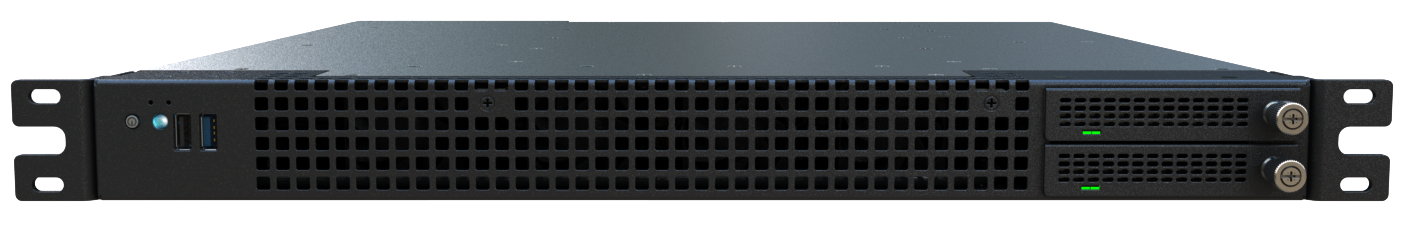

NEPTUNE 1U-SS

Compact, high-density 1U rugged rackmount server designed for performance-critical applications operating in constrained or harsh environments.

Download Datasheet
Contact Sales

Product Description

The Jensen Beach Technologies Neptune 1U-SS Server is a compact, modular rackmount computing platform engineered for high-performance and mission-critical applications. The system supports dual Intel® Xeon® 6 Scalable processors and integrates a dual-ROM architecture to enhance firmware resiliency and system reliability.

With a chassis depth of 16 inches, the Neptune 1U-SS delivers high compute density within space-constrained rack environments while supporting a single-slot, full-length PCIe Gen5 expansion device. Configurations are available in commercial, ruggedized, and program-specific customized builds. Systems are designed and assembled in the United States.

Processor

  • (2) LGA 4710 processor sockets
  • Supports up to (2) 6th Gen. Intel® Xeon® Scalable Processors (Max TDP 350W)
  • 6700E/P or 6500P Series
  • System-on-Chip (Chipset)

Memory

  • (16) DIMM Slots (8 per CPU)
  • DDR5 ECC memory
  • 1.1V modules: up to 6400 MT/s
  • MCRDIMM up to 8000 MT/s
    (requires P Series processor)

Network

  • (2) 10GbE RJ45 LAN
  • (2) 1GbE RJ45 LAN
  • (1) 1GbE RJ45 management LAN

Dimensional Drawings

Click to view dimensional drawings

Additional Specifications

PCIe Expansion

  • Up to (6) PCIe Gen5 x16 expansion slots depending on configuration
  • (1) PCIe Gen5 x16 expansion slot in GPU configuration

Removable Storage

  • (2) U.2 SSDs, up to 15mm SATA 3 or
    NVMe PCIe Gen5 x4

Video Output

  • (1) VGA

USB

  • (2) USB-A 3.2 (Front)
  • (2) USB-A 3.2 (Rear)

Serial Ports

  • (1) RJ45

Internal Storage

  • (2) M.2 slots with PCIe Gen5 x4 interface
  • Supports 2280 and 22110 sizes

Power Supplies

  • (2) CRPS units

Security Features

  • Optional TPM 2.0
  • Optional ProT Module

Verified Compatible OS

  • RHEL 6.8
  • RHEL 7
  • Windows Server 2022
  • CentOS 7

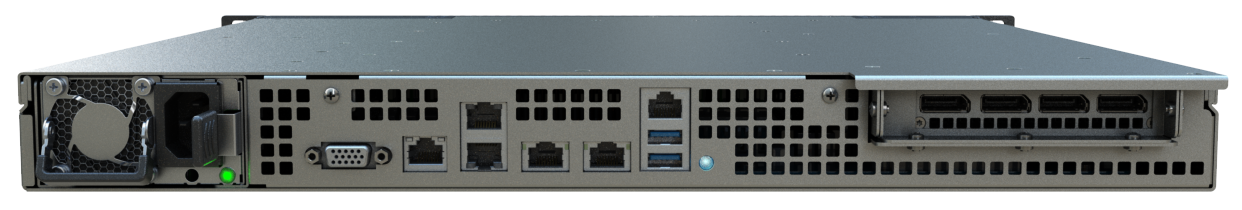

Rear Panel Options

Horizontal GPU Configuration

Click the image above to zoom

Environmental Specifications

Ruggedization Level 1 – Industrial

  • Operating temperature: 0°C to +55°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH

Ruggedization Level 2 – Extended

  • Operating temperature: -20°C to +65°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.002 g/Hz (10–2000 Hz random), 2 g sinusoidal (5–500 Hz)
  • Shock: 20 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours

Ruggedization Level 3 – Rugged

  • Operating temperature: -40°C to +75°C
  • Storage temperature: -50°C to +100°C
  • Vibration: 0.04 g/Hz (20–2000 Hz with a flat response to 1000 Hz), 6dB/octave roll-off from 100 to 2000Hz
  • Shock: 40 g peak sawtooth, 11 ms
  • Humidity: Up to 95% RH with varying temperature, 10 cycles, 240 hours
